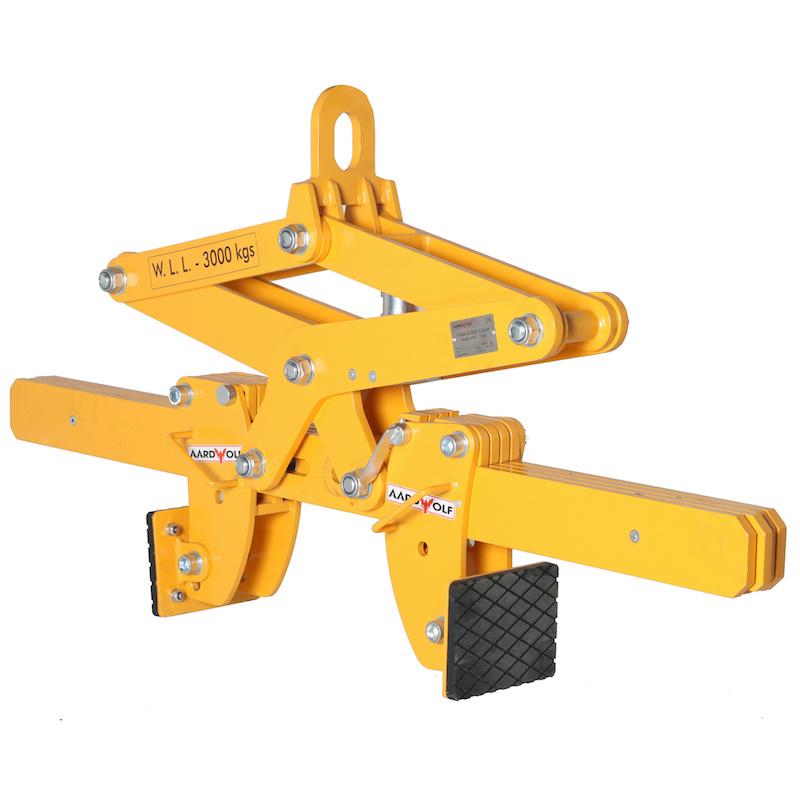

The Aardwolf AVBC-1100 Versa Block Clamp is designed to handle concrete blocks, stone blocks, rubber tires, drums, and other heavy materials. Its adjustable sliding pads can be reversed to grip a load from the exterior or from within, making the clamp adaptable to varied shapes and handling requirements.
01
Automatic grip and release
The gravity-controlled mechanism secures the load during lifting and releases after placement.
02
Reversible sliding pads
Adjustable pads can grip from the exterior or be reversed for internal gripping.
03
Positive pad locking
Side latches secure the sliding pads in position for stable handling.
04
Crane and forklift ready
The lifting eye supports use with an appropriately rated crane, hoist, or forklift boom.
3,000 kgWorking load limit
6,614 lbWorking load limit
150-1,100 mmGrip range
161 kgNet weight
Applications
Built for demanding material handling
Concrete and stone blocks
Rubber tires and drums
Square, cylindrical, and irregular heavy materials
Workshop, construction, and industrial handling
Adaptable jaw system: Reversible pads support external and internal gripping, and application-specific jaw configurations may be available for different material shapes.
Reference
AVBC-1100 technical specifications
Specification
Metric
Imperial
Grip range
150-1,100 mm
6-43.3 in
Working load limit
3,000 kg
6,614 lb
Net weight
161 kg
355 lb
Gross weight
175 kg
386 lb
Packaging dimensions
1,500 x 570 x 360 mm
59 x 22 x 14.2 in
Use the AVBC-1100 only within its rated capacity and in accordance with the product manual, inspection requirements, and an approved lifting plan.
Need help selecting the right clamp?
Our team can help confirm the grip range, capacity, and lifting arrangement for your application.
